5Install the iDRAC6 Enterprise card:

a Angle the card so that the RJ-45 connector fits through the back-panel opening. See Figure 3-17.

b Align the front edge of the card with the two front plastic retention standoffs next to the iDRAC6 connector on the system board, and lower the card into place. See Figure 3-17.

When the front of the card is fully seated, the plastic standoffs snap over the edge of the card.

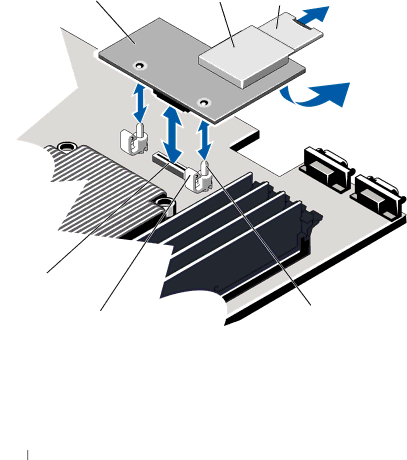

Figure 3-17. Installing or Removing an iDRAC6 Enterprise Card (Optional)

1

2

3



6







5



4







1

iDRAC6 Enterprise card

2

VFlash media slot

3

VFlash SD card

4

retention standoff posts (2)

5

retention standoff tabs (2)

6

iDRAC6 Enterprise card connector

110

Installing System Components
