Removing and Replacing the Optional Front Bezel

1Unlock the keylock at the left end of the bezel.

2Lift up the release latch next to the key lock.

3Rotate the left end of the bezel away from the front panel.

4Unhook the right end of the bezel and pull the bezel away from the system.

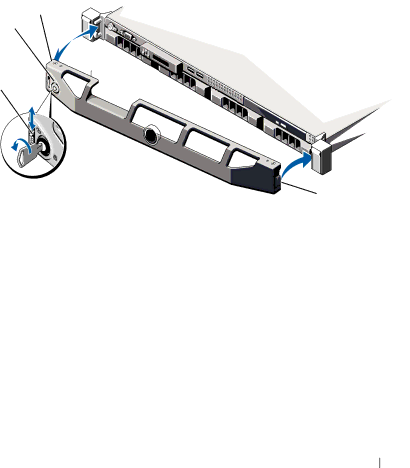

Figure 3-2. Removing and Replacing the Optional Front Bezel

3

2

1

4

1

release latch

2

keylock

3

bezel

4

hinge tab

To replace the optional bezel, hook the right end of the bezel onto the chassis, then fit the free end of the bezel onto the system. Secure the bezel with the keylock. See Figure 3-2.

Installing System Components

81
