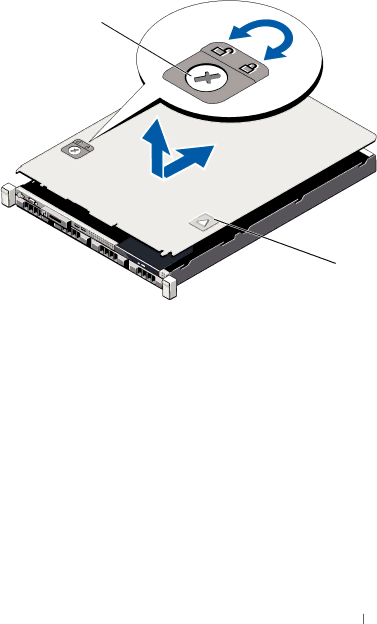

Figure 3-3. Removing and Replacing the System Cover

1

2

1

latch release lock

2

indent

Closing the System

1Place the cover onto the chassis and offset it slightly towards the back of the system, so that the two hooks on the back edge of the cover fit over the corresponding slots on the back edge of the chassis. See Figure 3-3.

2Slide the cover towards the front of the chassis till it snaps in position.

3Rotate the latch release lock in a clockwise direction to secure the cover.
