1Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet.

2Open the system. See "Opening the System" on page 82.

3Remove the system board shroud. See "Removing the System Board Shroud" on page 105.

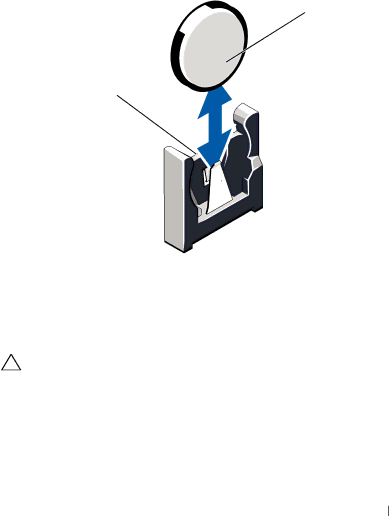

Figure 3-24. Replacing the System Battery

2

1

3

1

positive side of battery connector

2

system battery

3

negative side of battery connector





4Locate the battery socket. See "Jumpers and Connectors" on page 169.

CAUTION: To avoid damage to the battery connector, you must firmly support the connector while installing or removing a battery.

5Remove the system battery.

a Support the battery connector by firmly holding the positive side of the connector.

b Press the battery toward the negative side of the connector and lift it up out of the securing tab at the negative side of the connector.
