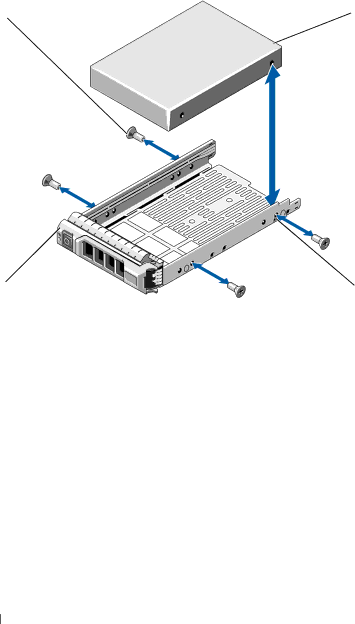

Figure 3-6. Installing a Hard Drive Into a Drive Carrier



2

3





1



4







1

drive carrier

2

screws (4)

3

hard drive

4

SAS/SATA screw hole

Installing a Hard Drive Into a Hard-Drive Carrier

1Insert the hard drive into the hard-drive carrier with the connector end of the drive at the back. See Figure 3-6.

2Align the holes on the hard drive with the back set of holes on the hard drive carrier.

When aligned correctly, the back of the hard drive will be flush with the back of the hard-drive carrier.

3Attach the four screws to secure the hard drive to the hard-drive carrier.

88

Installing System Components

Page 88
Image 88
Dell R410 Installing a Hard Drive Into a Hard-Drive Carrier, Drive carrier Screws Hard drive SAS/SATA screw hole
