3To disconnect the RAID battery cable from the connector on the system board, press the tab on the RAID battery cable connector, and gently pull the cable connector out of the connector on the system board.

See Figure 3-20.

4Pull back gently on the two tabs holding the RAID battery and lift the RAID battery from the battery carrier. See Figure 3-20.

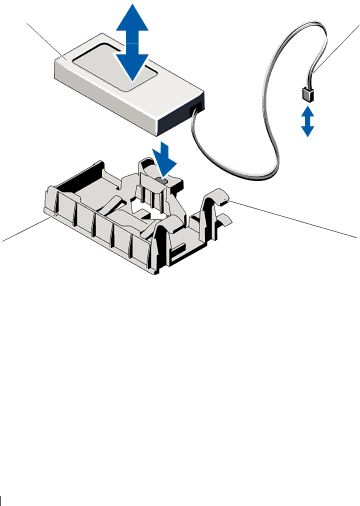

Figure 3-20. Removing and Installing the RAID Battery

1	2

4

3

1	RAID battery	2	battery cable connector
3	battery carrier tabs (2)	4	battery carrier

Installing the RAID Battery

1Insert the RAID battery into the battery carrier until it locks into place. See Figure 3-20.

2Connect the battery cable to the connector on the system board. See Figure 7-1.

3Close the system. See "Closing the System" on page 83.

118

Installing System Components

Image 118

Dell R410 owner manual Installing the RAID Battery, Battery carrier tabs
