4Remove the two screws securing the power distribution board to the chassis. See Figure 3-28.

5Slide the power distribution board away from the standoffs, and then lift the board out. See Figure 3-28.

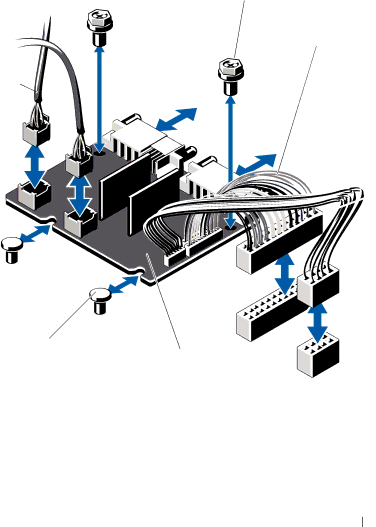

Figure 3-28. Power Distribution Board

1

2

5

4

3

1 screws (2)

3 power-distribution board

5 fan module cable connectors (2)

2power supply connectors (2)

4standoffs (2)

Installing System Components

139
