Section 6 - Chapter 2 - OkiLAN 6120e Setup for Windows 95/98

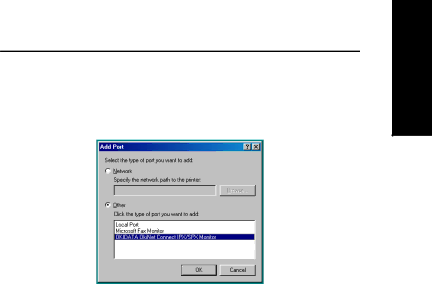

5.In the Add Port window, select the radio button labeled Other and select OKI OkiLAN 6120e Connect DLC Monitor as the type of port to add.
6.Click OK.
You will enter into the Add OkiLAN 6120e Connect Port screen where there will be a list of all OkiLAN 6120e print servers available on the local subnet.
7.Select the OkiLAN 6120e print server port name and click the Add button.
8.Click OK.
You will now be able to use OkiLAN 6120e Connect for DLC. Whenever you print to the printer configured with OkiLAN 6120e Connect, your print job will go directly to the OkiLAN 6120e print server port.
Port Settings
If you have printing problems while using the OkiLAN 6120e Connect printing port, you may check the status of the port. Select the Details tab on the Properties screen and then click the Port Settings button.
For more configuration options, click the Configure button.
Windows Printing
OKI OkiLAN 6120e User’s Guide | VI - 13 |
