Receiving documents

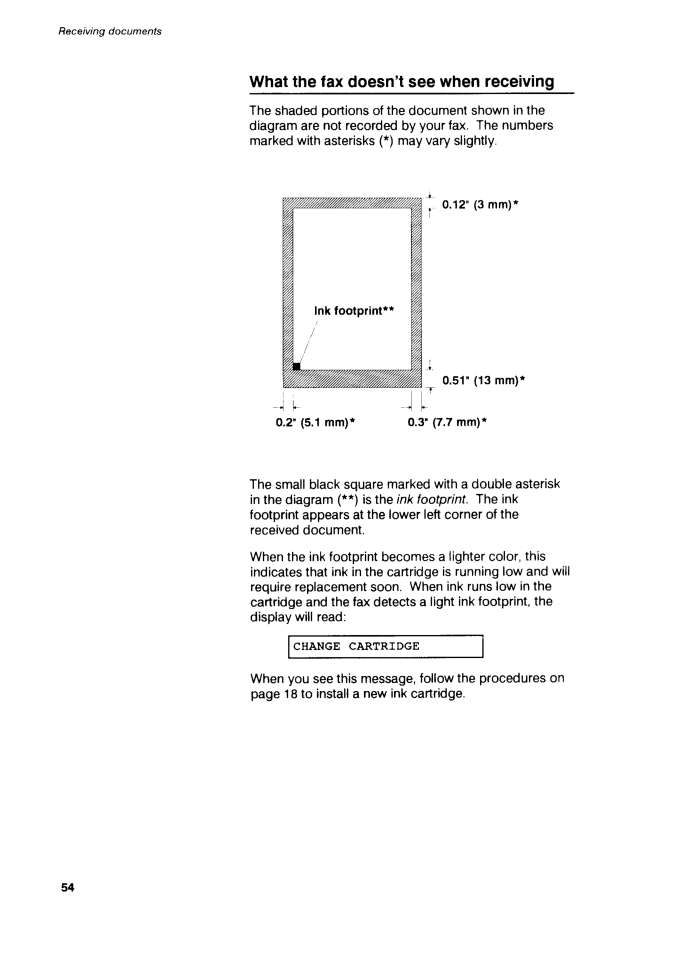

Whatthe fax doesn'tseewhenreceiving

Theshadedponionsof the documentshownin the diagramarenot recordedby yourfax. Thenumbers markedwithasterisks(*) mayvaryslightly.

-, o.tz'(3mm)*

Ink footprint**

	0 . 51'(13 mm)r
; r	I II
0.2'(5.1mm)r	0.3'(7.7mm)'

Thesmallblacksquaremarkedwitha doubleasterisk in the diagram(**) is the rnkfootprint.The ink footprintappearsat the lowerleftcornerof the receiveddocument.

Whenthe inkfootprintbecomesa lightercolor,this indicatesthatink in the caftridgeis runninglow and will requirereplacementsoon. Whenink runslow in the cartridgeand the fax detectsa lightinkfootprint,the displaywillread:

CHANGE CARTRIDGE

Whenyou seethismessage,followthe procedureson page18to installa newinkcanridge.
