Canon DZ3600u BNC Video Cable, Ensure that the main unit and other devices are turned off, Ê Note

Connecting to a Video Monitor or Projector

BNC Video Cable

1.

Ensure that the main unit and other devices are turned off.

2.

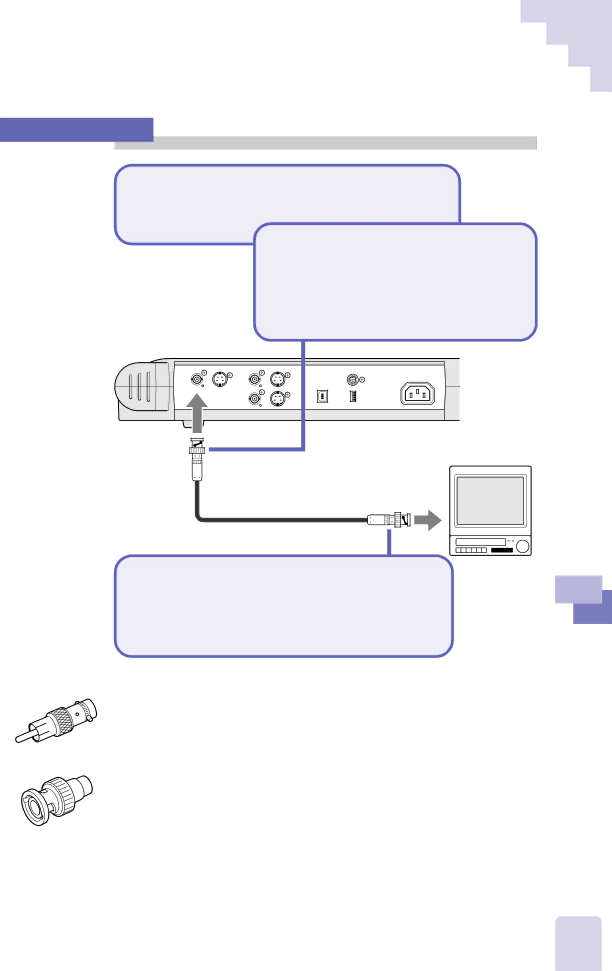

Insert the plug on one end of the BNC video cable into the video output port on the main unit.

• Turn the plug in the port to secure it.

VIDEO S VIDEO

OUTPUT

EXT	S VIDEO	AC INLET	Rear Panel of
VIDEO		RS-232C	the Main
IN 1	USB
		60/100	Unit
EXT		HandShake
		Reserved
IN 2		Service Mode
		OFF ON

Video Monitor or

Projector

BNC Video Cable

3.

Insert the plug on the other end of the BNC video cable into the video input port on the video monitor or projector, and secure it.

4

Operationg

BNC to Pin Adapter

Pin to BNC Adapter

•••Ê Note •••

•If the video in port on the video monitor or projector is a pin-type port, you will need t o use a BNC t o Pin adapter , such as the one pictur ed to the left, which is r eadily av ailable on the market.

• Conversely , you may use a pin-type video cable o f the kind commonly used on home-use VCRs with a Pin to BNC adapter attached to the DZ-3600U end of the cable . However, this type o f cable is gener ally pr one t o significant

signal loss , which means that the decr ease in image quality will incr	ease in
proportion t o the length o f the cable .
• An external VCR may also be connected t o either output port if it is fr	ee to

record DZ-3600U images . The audio portion o f the pr esent ation, ho wever, should be recorded with a separate microphone connected directly to the VCR because the audio portion will be transmitted through the S video or video output port.
