10If a Mini PCI card is not already installed, go to step 11. If you are replacing a Mini PCI card, remove the existing card:

a Disconnect the Mini PCI card from the antenna cables.

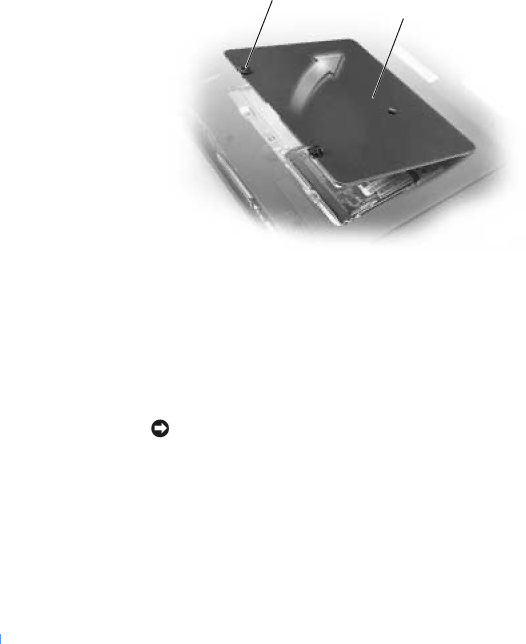

screws (2)

memory module cover

bTo release the Mini PCI card, spread the metal securing tabs until the card pops up slightly.

cLift the Mini PCI card out of its connector.

11Align the Mini PCI card with the socket at a 45-degree angle, and press the Mini PCI card into the socket.

12Connect the antenna cables from the Mini PCI card to the antenna connectors on the computer.

NOTICE: The connectors are keyed for correct insertion; do not force the connections.

86

Re placing Par ts

Image 86

Dell PP01L manual Screws Memory module cover
