Programming Console Operations Section 4-3

5. The search will continue until an END instruction or the end of Program Memory is reached. In this case, an END instruction was reached.

Indicates the address of END instruction.

SRCH

00397CONT SRCH END (001)00.4KW

Indicates the amount used by the user program in units of 0.1 Kwords.

4-3-9 Inserting and Deleting Instructions

This operation is used to insert or delete instructions from the program. It is pos- sible in PROGRAM mode only.

RUN	MONITOR	PROGRAM
No	No	OK

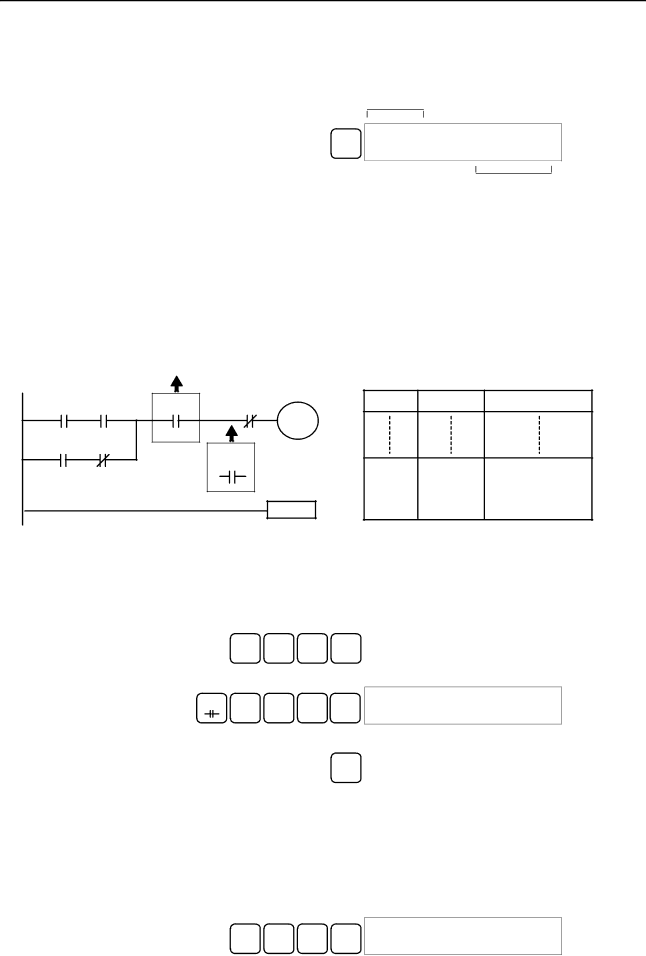

To demonstrate this operation, an IR 00105 NO condition will be inserted at program address 00206 and an IR 00103 NO condition deleted from address 00205, as shown in the following diagram.

Original Program

00100 00101

00201 00102

00103

Delete

00104

00105

Insert

01000

END(01)

Delete

Address Instruction Operands

00205	AND	00103
00206	AND NOT	00104
00207	OUT	01000
00208	END(01)	-

Insert

Insertion	Follow the procedure below to insert the IR 00105 NO condition at address
	00206.
1, 2, 3...	1.	Press the CLR Key to bring up the initial display.
	2.	Input the address where the NO condition will be inserted and press the
		Down Arrow Key. It is not necessary to input leading zeroes.
		C	A	6	↓	00206READ
		2	0			AND NOT	00104

3. Input the new instruction and press the INS Key.

AND	B	A	F		00206INSERT?
	1	0	5	INS	AND	00105

4. Press the Down Arrow Key to insert the new instruction.

	↓	00207INSERT END
		AND NOT	00104
	Note For instructions that require more operands (such as set values),
	input the operands and then press the WRITE Key.
Deletion	Follow the procedure below to delete the IR 00103 NO condition at address
	00205.

1, 2, 3... 1. Press the CLR Key to bring up the initial display.

2.Input the address where the NO condition will be deleted and press the Down Arrow Key. It is not necessary to input leading zeroes.

C	A	F	↓	00205READ
2	0	5		AND	00103
