Programming Console Operations |
| Section | ||
|
|
|
|
|
3. Press the DEL Key. |
|
|
|
|
|
|
|
| |
| 00205DELETE? |
|
| |
DEL | AND | 00103 |
|
|
|
|
|
|
|
4.Press the Up Arrow Key to delete the specified instruction.
If the instruction has more operands, the operands will be deleted automati- cally with the instruction.
↑ | 00205 DELETE END | ||
AND | 00105 | ||
| |||
|
|
| |
Corrected Program

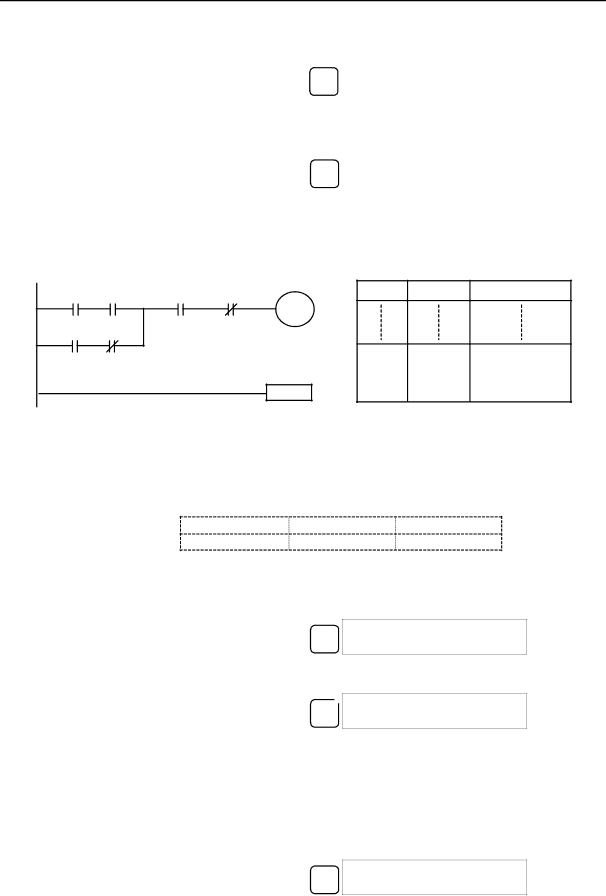

After completing the insertion and deletion procedures, use the Up and Down Arrow Keys to scroll through the program and verify that it has been changed correctly, as shown in the following diagram.
00100 00101
00201 00102
00105 00104
01000
END(01)
Address Instruction | Operands |
00205 | AND | 00105 |
00206 | AND NOT | 00104 |
00207 | OUT | 01000 |
00208 | END(01) | - |
4-3-10 Checking the Program
This operation checks for programming errors and displays the program address and error when errors are found. It is possible in PROGRAM mode only.
RUN | MONITOR | PROGRAM |
No | No | OK |
1, 2, 3... 1. Press the CLR Key to bring up the initial display.
2.Press the SRCH Key. An input prompt will appear requesting the desired check level.
SRCH
00000PROG CHK CHK LBL (0)2)?
3.Input the desired check level (0, 1, or 2). The program check will begin when the check level is input, and the first error found will be displayed.
A
00178CIRCUIT ERR
0 OUT | 00200 |
Note Refer to
4.Press the SRCH Key to continue the search. The next error will be dis- played. Continue pressing the SRCH Key to continue the search.
The search will continue until an END instruction or the end of Program Memory is reached. A display like this will appear if the end of Program Memory is reached:
SRCH
00300NO END INST END
