Problem solving

Cleaning the Q1222 and Q1210 sensors

Cleaning the Q1222 and the Q1210 sensors should be performed only when directed by a Customer Support Center Representative.

Perform the following when it is necessary to clean the Q1222 and the Q1210 sensors.

1.Open the finisher top cover.

2.Look down at the rear section of the tilt bed area, as shown in figure 6-13, to view the sensors.

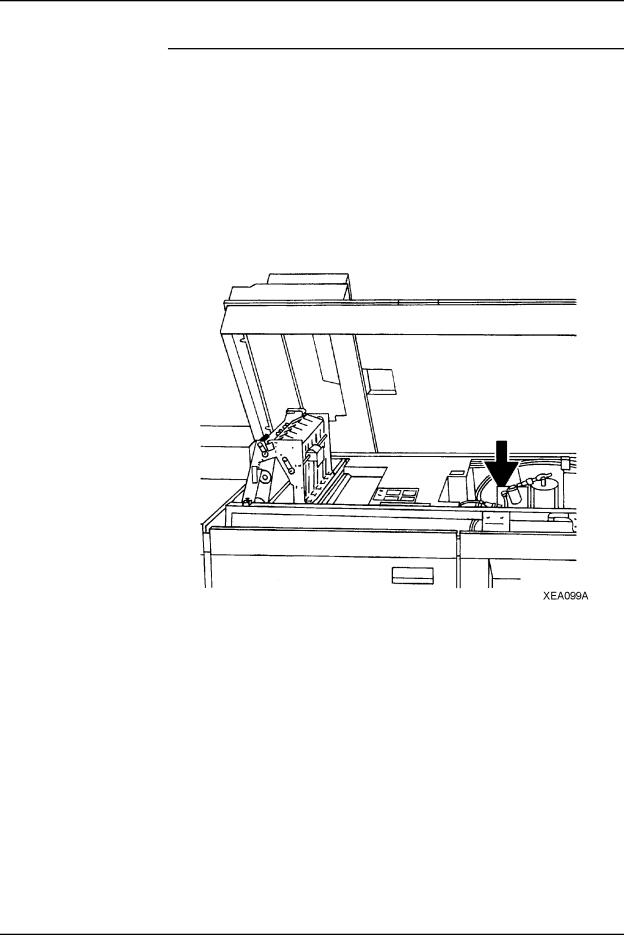

Figure 6-13. Locating the Q1222 and Q1210 sensors

3.Locate the Q1222 and Q1210 sensors, as shown in figure 6- 14.
