Routine maintenance

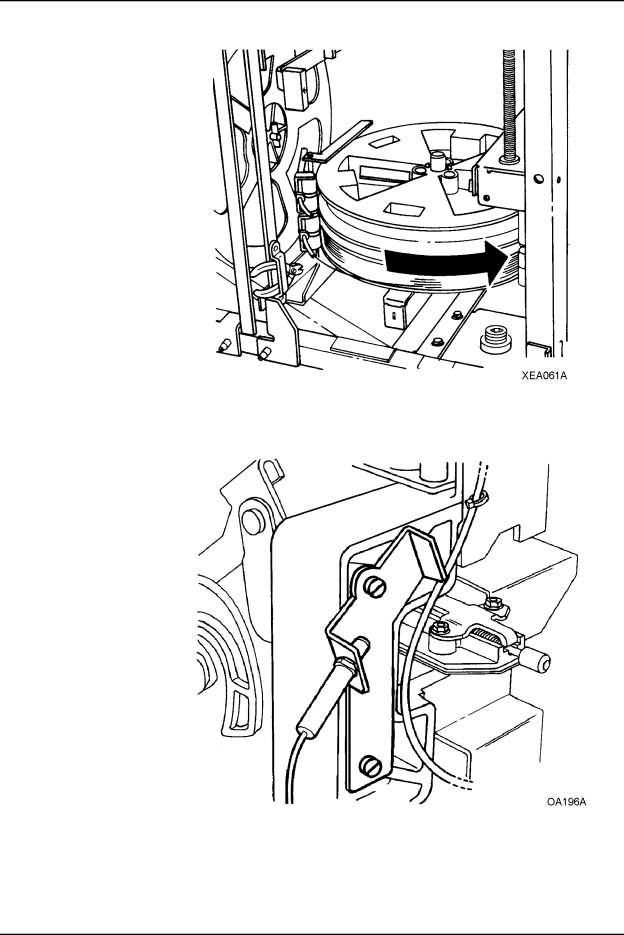

Figure 5-24. Rewinding the remaining wire

6.Insert the plug into the measuring bracket, as shown in figure 5-25.

Figure 5-25. The measuring bracket

7.Release and remove stitcher spool A.

a.Locate the green pin release handle under spool B, as shown in figure 5-26.

DocuTech 61xx Operator Guide

5-27
