Routine maintenance

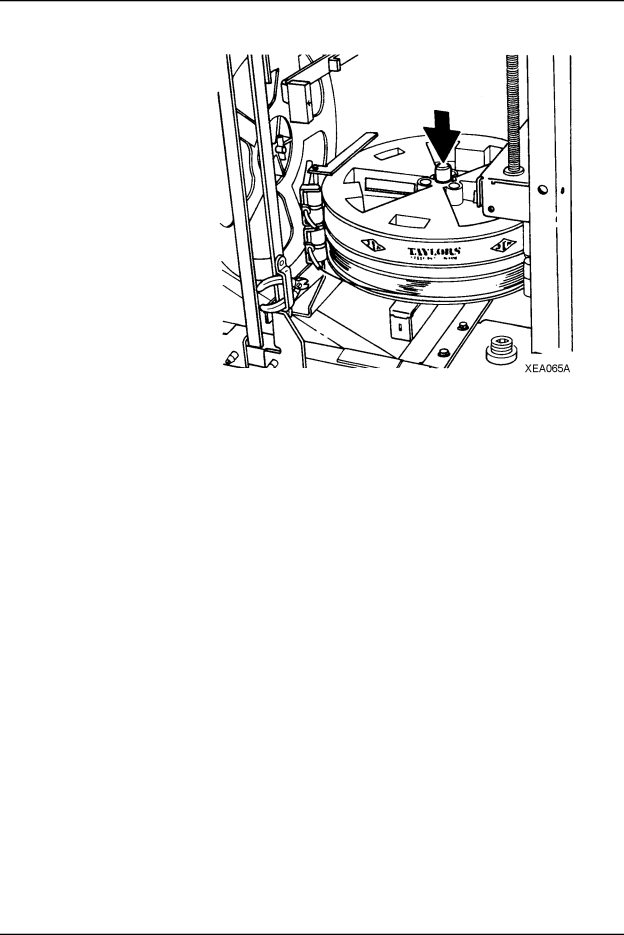

Figure 5-27. Replacing the pin

9.Remove any damaged wire.

WARNING

Hold the wire on the spool to prevent eye injury and to keep the wire from unwinding.

a.Locate the end of the wire on the new spool.

b.Using the wire cutters, carefully clip any bent or twisted wire from the lead end of the wire.

c.Hold onto the end of the wire and carefully remove the paper wrapper, as shown in figure 5-28.

DocuTech 61xx Operator Guide

5-29
