Problem solving

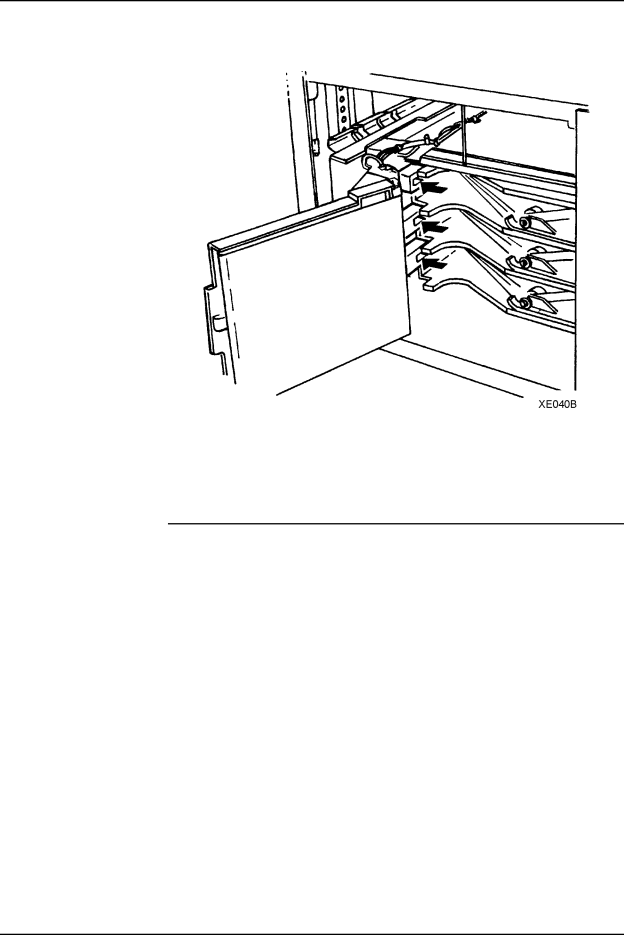

Figure 6-15. Locating the Q1205, Q1206, and Q1207 sensors

4.Brush a folded sheet of paper across each sensor to clear any obstruction.

5.Close the bindexer and finisher doors.

Clearing the Q1213 sensor

Clearing the Q1213 sensor should be performed only when directed by a Customer Support Center Representative.

NOTE: Perform the following when it is necessary to clear the Q1213 sensor.

1.Open the finisher doors.

WARNING

The top of the binder is approximately 425°F (218°C). Do not touch the heated areas or you may get burned. If the binder has been in a "Ready" condition, allow it to cool for at least 1 hour before continuing the procedure.

2.Grasp the green handle on the binder drawer. Pull the drawer out until it stops.

3.Locate the Q1213 sensors, as shown in figure 6-16.
