Routine maintenance

Refer to the procedure, Replacing the binder tape reel, in this guide for information on how to remove and replace the binder tape reel.

Replacing the binder tape reel

Use this procedure to replace the binder tape in the system.

To ensure proper binding and to reduce binder tape jams, do not leave binder tape in the system when the binder is not in use.

If necessary, refer to the label on the binder for instructions on how to replace the binder tape.

The following steps must be performed to replace the binder tape wheel.

WARNING

All areas of the binder drawer, including the binder tape, are hot, approximately 425°F (218°C), and may cause serious burns. If the binder has been in a "Ready" condition, allow the binder drawer to cool at least one hour before continuing the procedure.

1.Open the finisher doors.

2.Grasp the green handle on the binder drawer and pull the drawer out until it stops.

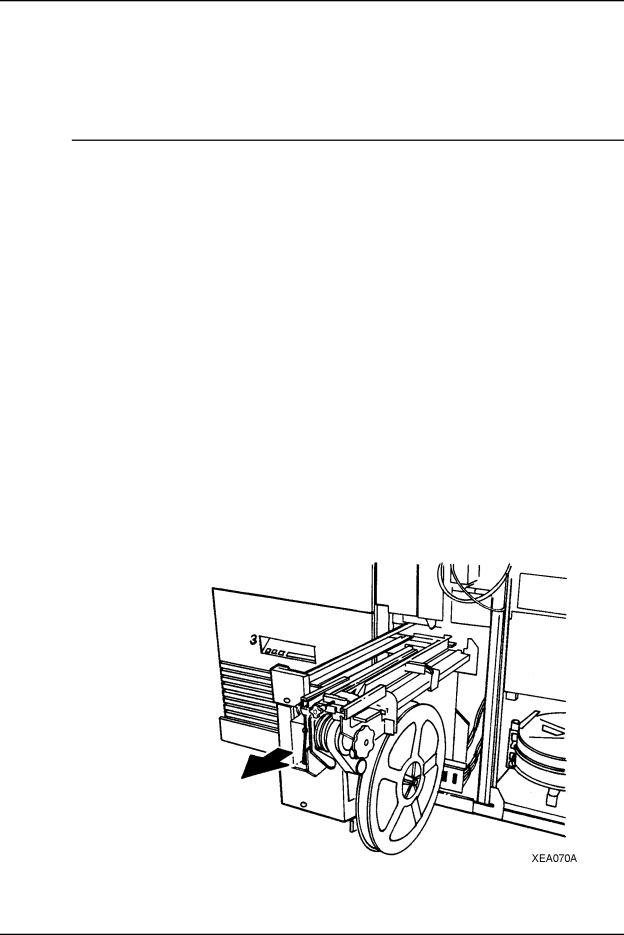

Figure 5-32. Opening the binder drawer

3. Remove the tape from the drive roll.

DocuTech 61xx Operator Guide

5-33
