Xerox 61xx manual Folding the paper, Clearing the Q1201 sensor

Problem solving

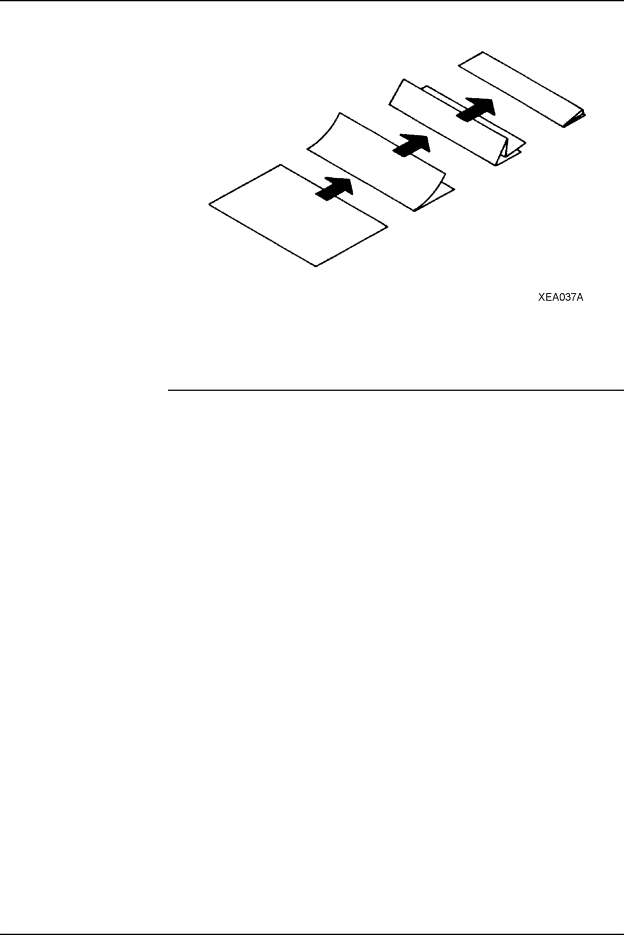

Figure 6-9. Folding the paper

2.Use the folded sheet of paper to clear any obstructions in the following sensor areas.

Clearing the Q1201 sensor

Clearing the Q1201 sensor should be performed only when directed by a Customer Support Center Representative.

1.Open the processor top cover.

NOTE: The Q1201 sensor is located under the processor top cover on the right side.

2.Locate the Q1201 sensor, as shown in figure 6-10.

6-18 DocuTech 61xx Operator Guide
