Routine maintenance

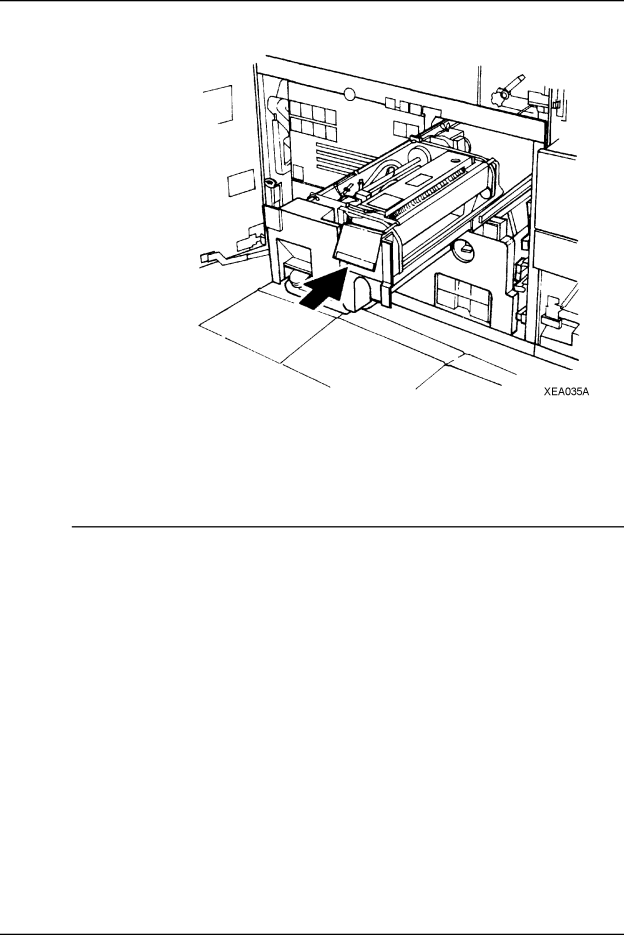

Figure 5-20. Closing the fuser drawer
6. Close the processor doors.
The fuser agent message will disappear after the system makes approximately 20 prints.
Replacing the stitcher spool A
Use this procedure to replace stitcher spool A in the system.
Check stitcher spools A and B visually during the
Stitcher spool A is the spool on top, and stitcher spool B is the spool on the bottom.
If spool B needs new wire, call the customer support center.
Refer to the section, "Calling for assistance," in this guide.
There is a label behind the stitcher panel that gives instructions for replacing the stitcher spool A. Refer to this label if needed.
The following steps must be performed to replace the stitcher spool A.
1.Open the finisher doors.
2.Lift the stitcher panel, which is located directly above the stitcher spools.
3.Pull the green stitcher head release handle forward and up until it latches into place, as shown in figure
