Routine maintenance

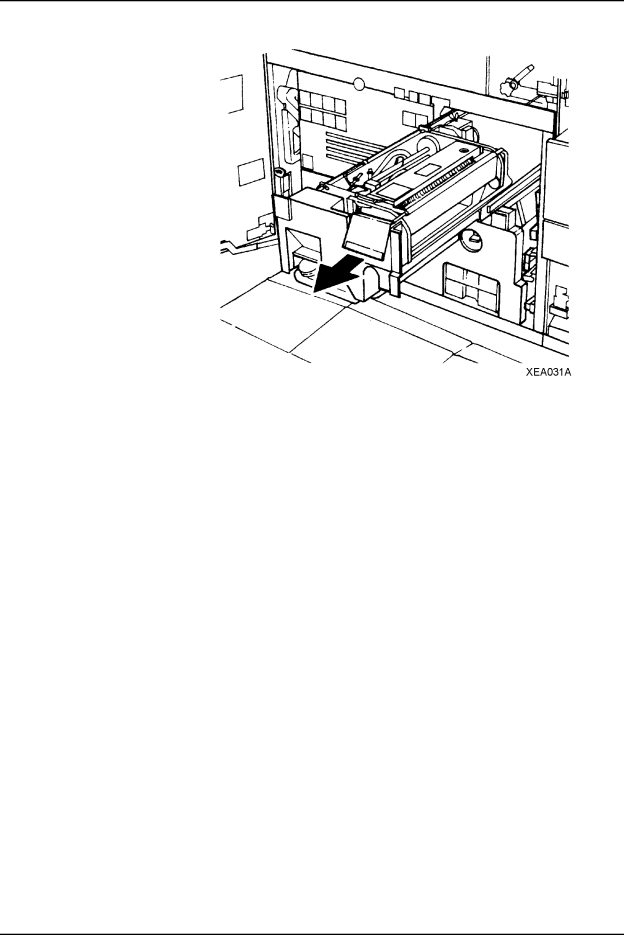

Figure 5-17. Opening the fuser drawer

WARNING

Fuser agent contains silicone, which can cause irritation upon contact with the eye. Make sure that you wash your hands with soap and water after you finish this procedure.

4.Fill the fuser agent reservoir.

a.Pull the fuser agent reservoir out until it stops.

b.Remove the reservoir cap by turning it counterclockwise.

DocuTech 61xx Operator Guide

5-21
