Routine maintenance

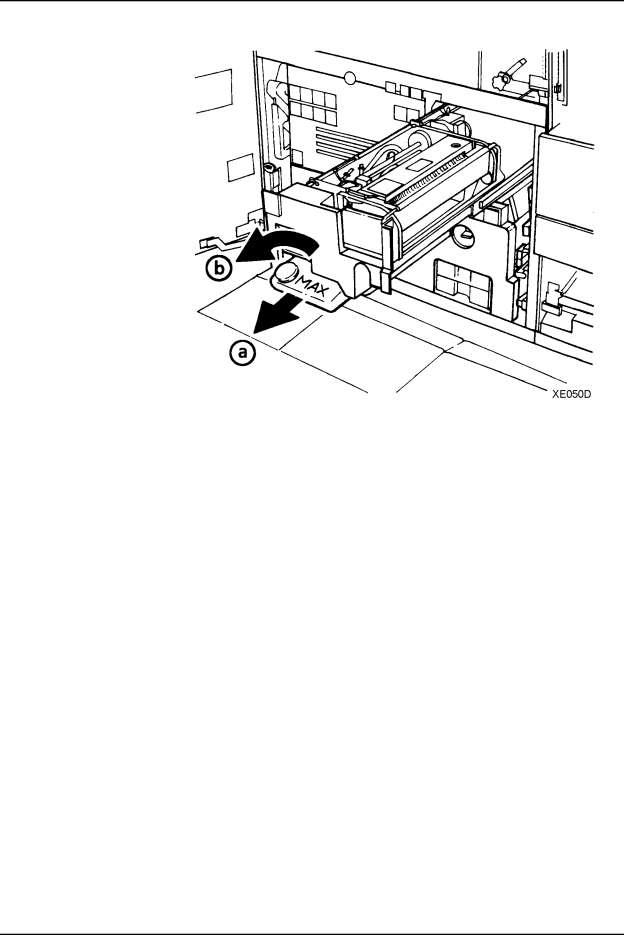

Figure 5-18. Preparing to add fuser agent

WARNING

Fuser agent spills cause the floor to be slippery. If any fuser agent is spilled onto the floor, it must be removed immediately.

c.Open a new box of fuser agent and remove the bottle. Remove the cap from the bottle of fuser agent.

d.Carefully pour the fuser agent into the reservoir until the level reaches the MAX line.

5-22

DocuTech 61xx Operator Guide
