Main Motor

1Remove the Main Gear Assembly (page 6-34).

2Remove the three screws securing the motor to the back of the Main Gear Assembly.

3Carefully separate the motor from the Gear Assembly.

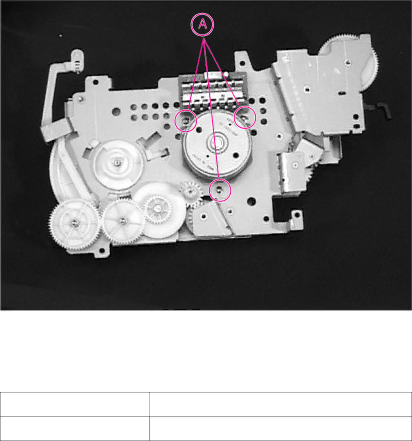

Figure 6-59Main Gear Assembly with Motor (rear view)

Item

A

Explanation

Screws

6-70Removing and Replacing Parts
