Chapter 6: Sub-Element Grouping Rules

Infrastructure Branch (No Rules or Conditions) (cont.)

Sub-branch Name

Description









Interface

Type: Static.



Purpose: Filters by condition:



(%(AP_ifType) = 'ds1' AND %(VoIPCallMgrSerialOrDsp)



NOT LIKE 'voice%')

Interface

Type: Static.

--All

Purpose: Filters by condition:



%(AP_ifType) = 'ds1' AND %(VoIPCallMgrSerialOrDsp)



NOT LIKE 'voice%'

Interface

Type: Static.

--By Gateway

Purpose: Filters by condition:



%(AP_ifType) = 'ds1' AND %(VoIPCallMgrSerialOrDsp)



NOT LIKE 'voice%'

Interface

Type: Rule.

--By Gateway

Purpose: Groups the collected PSTN gateway interface sub-elements by name.

----%(ElementNAME)







Sub-Element Collect Grouping

The sub-element collection tree organizes the requests that collect metrics from sub-elements.

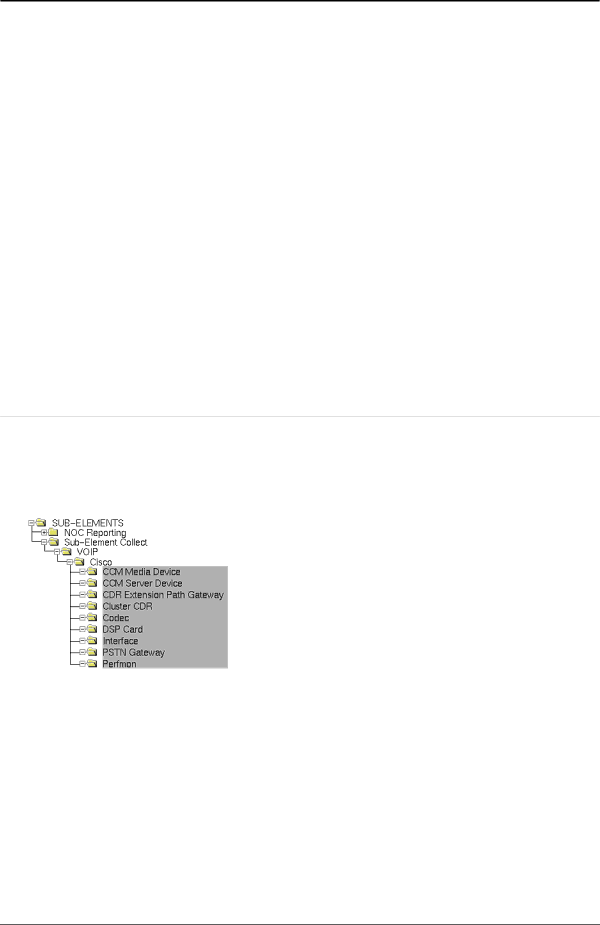

The following illustration is a portion of the Sub-Element Collect tree as it appears in the DataMart Rule Editor. The shaded branches represent the Cisco IP Telephony portion of the tree:
