Setup Menus

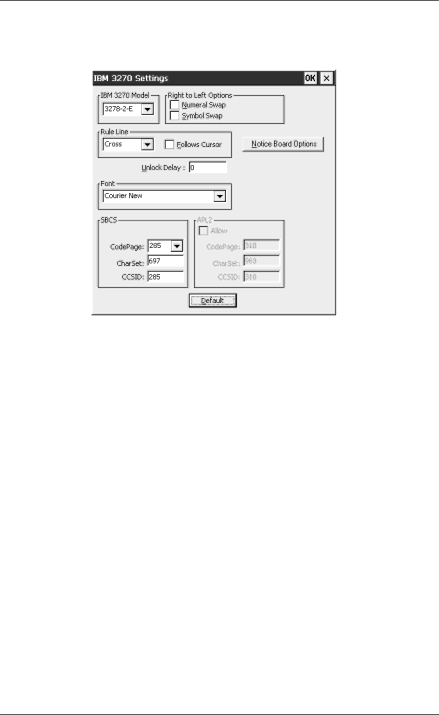

IBM 3270 Settings

This dialog box is displayed by selecting IBM 3270 in the Settings menu.

IBM 3270 Model

Factory default: 3278-2-E

This specifies what is reported back to the host in response to a terminal identification request. (Note that not all features of the specified terminal may be supported.) TN3287 printing is supported by selecting 3287-1.

One of four display sizes can be selected:

3278/9-224 rows by 80 columns 3278/9-332 rows by 80 columns 3278/9-443 rows by 80 columns 3278/9-527 rows by 132 columns

3278 settings with the E extension provide support for the following extended attributes (these are supported by the 3279 as standard):

3270 Field Attributes

Extended Highlighting

Foreground Colour

Query Reply Inbound Structured Fields

5-39
