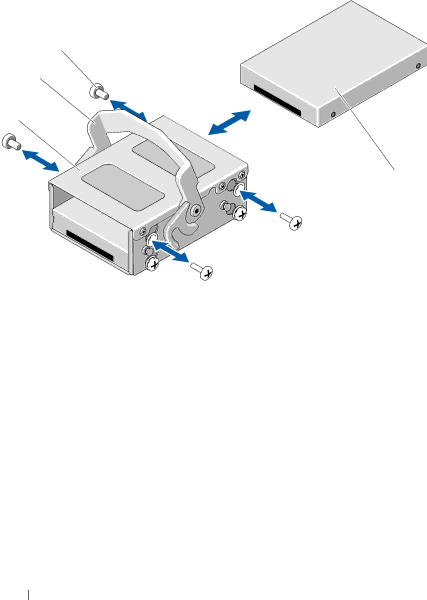

Figure 3-13. Installing and Removing an Internal Hard Drive From the Internal Hard-Drive Bay

3

2

1

4

1

internal hard drive bay

2

release latch

3

screws (4) *

4

internal hard drive

*Screws are supplied along with the hard drives ordered from Dell.

Installing a Hard Drive Into a Hard-Drive Bay

1Insert the hard drive into the internal hard-drive bay with the connector end of the drive at the back, until it is flush with the back of the hard-drive bay. See Figure 3-13.

2Attach the four screws to secure the hard drive to the hard-drive bracket.

102

Installing System Components
