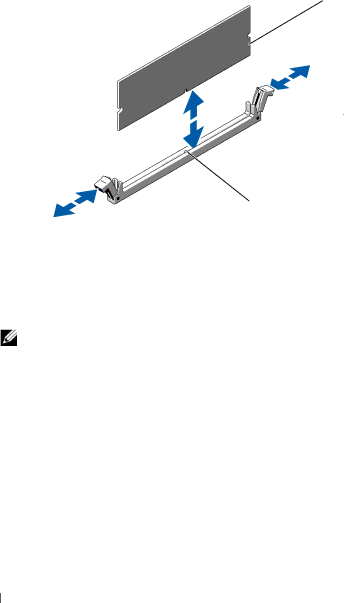

Figure 3-19. Installing and Removing a Memory Module
1
2
|
| 3 |
1 | memory module | 2 memory module socket ejectors (2) |
3 | alignment key |
|
7Align the memory module's edge connector with the alignment key of the memory module socket, and insert the memory module in the socket.
NOTE: The memory module socket has an alignment key that allows you to install the memory module in the socket in only one way.
8Press down on the memory module with your thumbs to lock the memory module into the socket.
When the memory module is properly seated in the socket, the ejectors on the memory module socket align with the ejectors on the other sockets that have memory modules installed.
9Repeat step 5 through step 8 of this procedure to install the remaining memory modules. See Table
10Replace the cooling shroud. See "Installing the Cooling Shroud" on page 91.
11Close the system. See "Closing the System" on page 89.
