Defining notations

Defining notations

Notations allow you to define and process non-XML objects within an XML model.

For example: picture files with a .GIF extension.

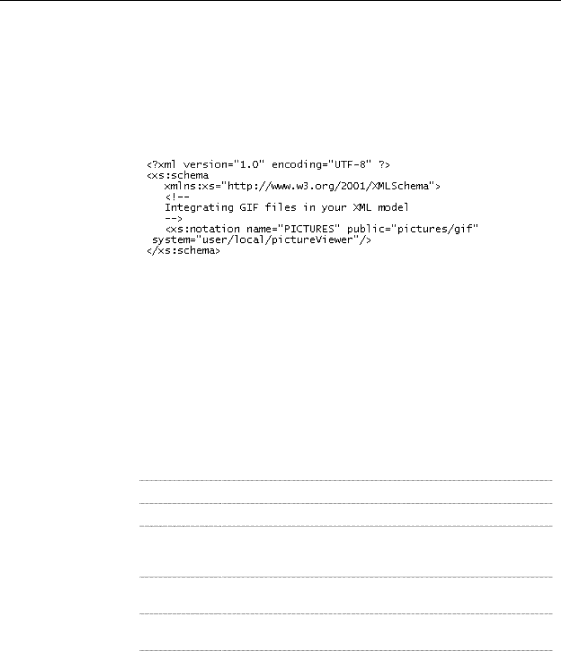

Generated schema:

Notations are not available on models targeted with XDR.

Defining notation properties

To display a notation property sheet, double-click its name or its icon in the

Browser tree view.

The General page of a notation property sheet displays the following properties:

Property	Description
Name	Name of the notation. It must be a no-colon-name (See Glossary)
Code	Code of the notation. It must be a no-colon-name
Comment	Descriptive label of the notation
Stereotype	Sub-classification used to extend the semantics of an object
	without changing its structure. It can be predefined or user-
	defined
ID	ID of the notation. Its value must be of type ID and unique within
	the model containing the notation
Public	URI reference identifying the non-XML object. For example:
	pictures/gif
System	URI reference identifying the application that will process the
	non-XML object. For example: user/local/pictureViewer

120	PowerDesigner
