Chapter 3 Working with an XML model

Mapping XML Model objects to PDM objects

You can map elements or complex types and their corresponding attributes to

PDM objects.

The following table shows all the allowed mappings between XML Model objects and PDM objects:

XML Model object	PDM object
Element	Table, view, column, view column
Element attribute	Column, view column
Complex type	Abstract data type
Complex type attribute	Abstract data type attribute

In this section, we will talk about tables but the functionalities also apply to views, columns and/or view columns.

Mapping elements

You can map elements to PDM objects.

Once the tables are identified and mapped with the elements, you can define mappings between columns and attributes.

But columns can also be mapped to elements. Mapping a column either to an attribute or an element depends on the schema presentation:

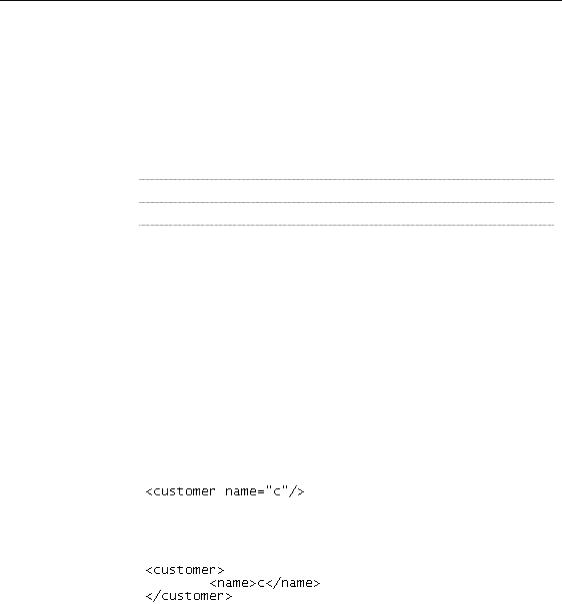

Case 1:

A column should be mapped to the name attribute.

Case 2:

A column should be mapped to the name element.

You have to use the Mapping page of an element property sheet to define element mappings.

XSM User's Guide

169
