Chapter 5 Exchanging data with databases supporting XML

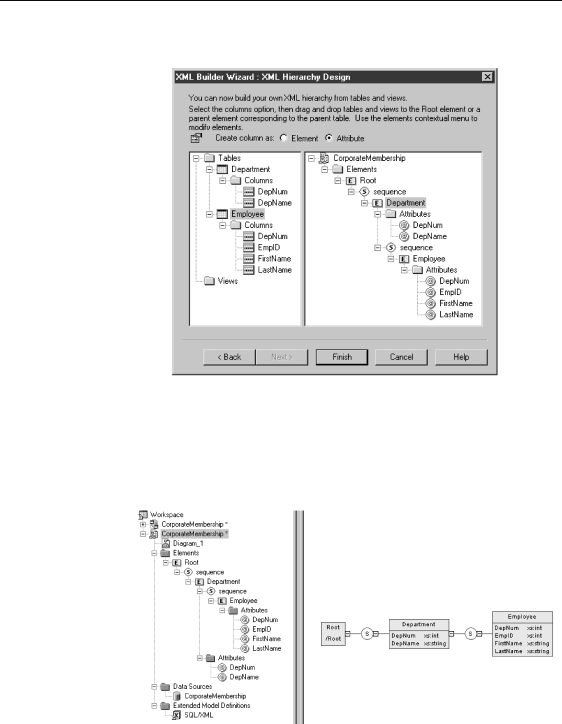

7Drag and drop tables from left to right panel, and build an XML hierarchy.

For more information on building an XML hierarchy, see section Generating an XML model via the XML Builder Wizard, in chapter Generating from a PDM, in the PDM User’s Guide.

8Click Finish.

The new XML model appears in the workspace with the generated elements and attributes.
