Generating an annotated schema for Microsoft SQL Server 2000

5Select Language→Generate XML Schema Definition File.

or

Select Language→Generate XML-Data Reduced File.

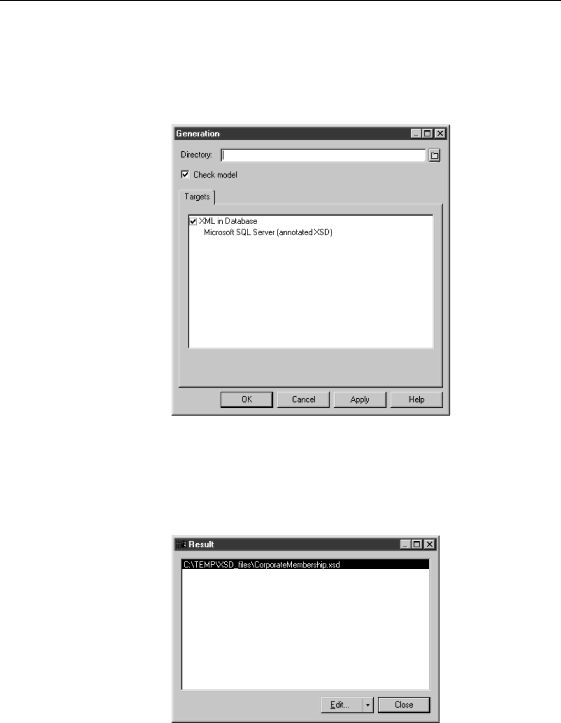

The Generation dialog box appears with Microsoft SQL Server selected in the Targets page.

6Click the Select a Path button, beside the Directory box, to select a path for the annotated schema file.

7Click OK.

The Result dialog box appears with the path of the annotated schema file selected.
