Standards and Specifications

External Connectors

BITS Input (RJ-45) Connector

Parameter

Nominal

Minimum

Maximum

Notes











T1 signal stream

1.544 MHz

25 ppm

+25 ppm

conforms to ANSI









T1.102

E1 signal stream

2.048 MHz

25 ppm

+25 ppm

conforms to ITU G.703

8/64 kHz composite

64 kHz

25 ppm

+25 ppm

conforms to Bellcore

clock







TA-TSY-000378

Transmit clock

1.544 MHz

25 ppm

+25 ppm

all 1’s signal stream









when locked to reference

Transmit clock

1.544 MHz

150 ppm

+150 ppm

out-of-lock condition

Maximum voltage; any





50 V



pin relative to pin 7



















5 Standards and Specifications

Pin Number

Function

1

Receive A

2

Receive B

3

No connection

4

Transmit A

5

Transmit B

6

No connection

7

Ground

8

4.7 nF to Ground





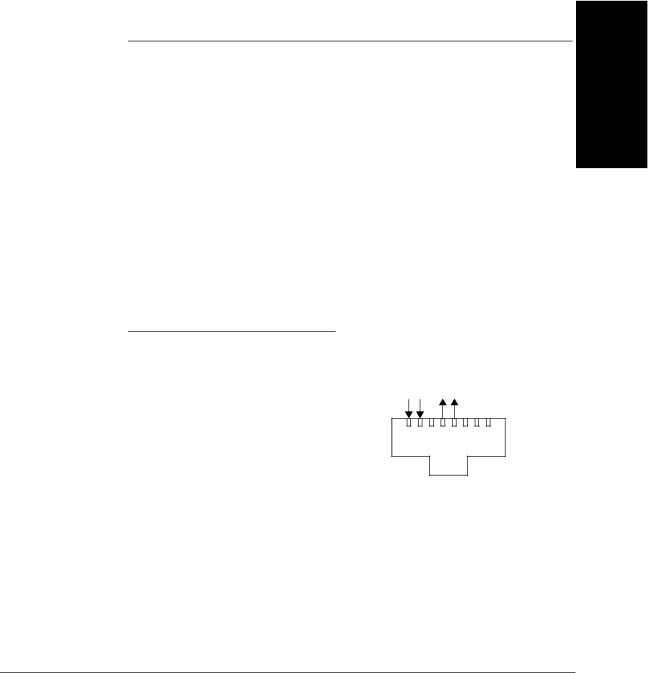

1 2 3 4 5 6 7 8

5-7
