Set the end time and date of the absolute time range. The time

of the week



only within the

To

of the day is in the hh:mm format (24-hour clock), and the date

specified

is in the MM/DD/YYYY format. The end time must be greater



period.



than the start time.











Return to IPv4 ACL configuration task list.

Creating an IPv4 ACL

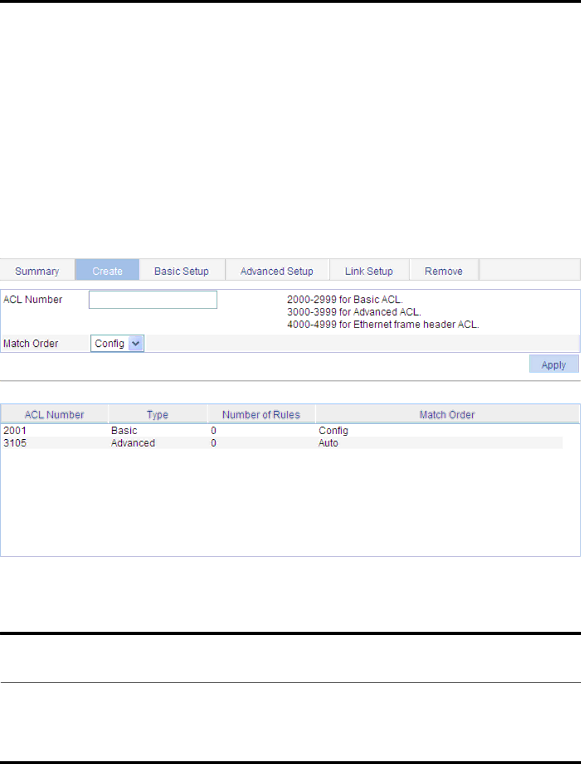

Select QoS ACL IPv4 from the navigation tree and then select the Create tab to enter the IPv4 ACL configuration page, as shown in a.

a.The page for creating an IPv4 ACL

2 describes the configuration items for creating an IPv4 ACL.

2.IPv4 ACL configuration items

Item

Description

ACL Number

Set the number of the IPv4 ACL.

Set the match order of the ACL. Available values are:

Match Order∙ Config—Compare packets against ACL rules in the order that the rules are configured.

∙Auto—Compares packets against ACL rules in the depth-first match order.

Return to IPv4 ACL configuration task list.

Configuring a rule for a basic IPv4 ACL

Select QoS ACL IPv4 from the navigation tree and then select the Basic Setup tab to enter the rule configuration page for a basic IPv4 ACL, as shown in a.
