SPRAY ECU- A2036 | V1.98 21/06/06 |
|
|
21.4 SPRAY ECU

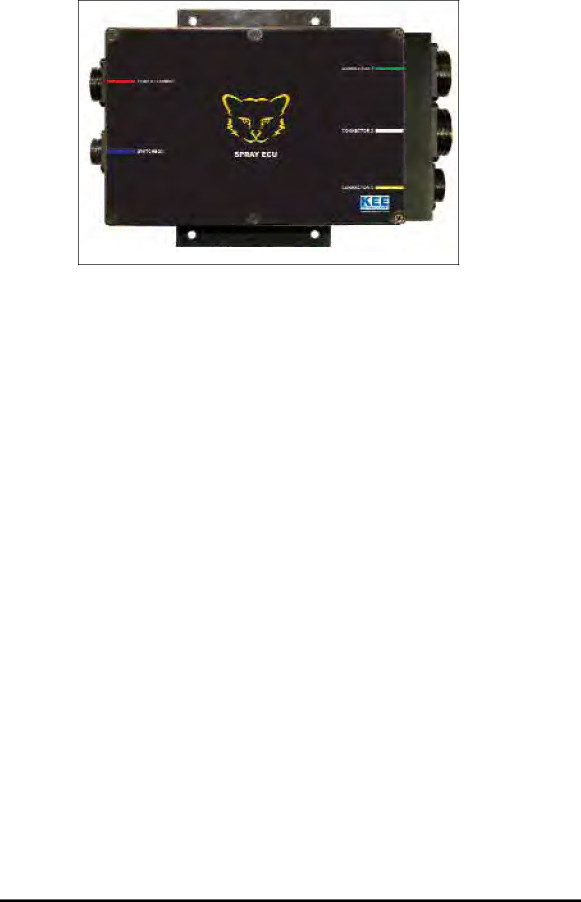

Figure 86: Spray ECU A2036
Part Number: A2036
Firmware Version: BMS 207
Note: Serial No. 060001- 060004 had the old overlay with no Yellow ZYNX logo.
Note: Serial No. 060001- 0600014 had Section 10A on ‘Connector 2’ Pin 17
Note: Serial No. 060001- 0600014 had Section 10B on ‘Connector 2’ Pin 16
POWER /COMMS Looms: A2278
Tractor Harness: A2434 (Economy Tractor Harness)
Sprayer Harness (To suit A2434): A862 (Sprayer Harness 6.5m) A1437 (Sprayer Harness 13m) A1438 (Sprayer Harness 15m)
ZYNX Sprayer Controller Software
1.OPTIONS/ECU/Controller: Select ‘Spray ECU’
2.OPTIONS/ECU/ECU Model: Select ‘ECU, ECU3’
Page 116
