3 Lift the panel away from the chassis.

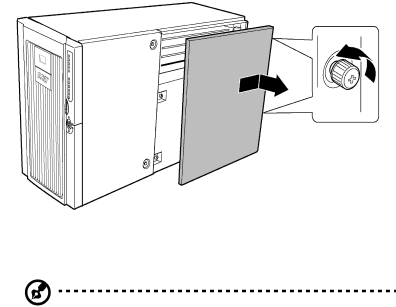

Figure 12 - Removing the rear access panel

To install the rear access panel

Note: Before installing the rear access panel, check that you have not left any tool or loose parts inside the system.

1Position the panel on the chassis so that the panel tabs align with the chassis slots.

2While lightly pressing the panel against the chassis, slide it toward the front of the chassis until the panel tabs fully engage the chassis slots.

3Attach the panel to the chassis with the captive fasteners located on the rear edge of the panel.

Front access panel

The front access panel provides access to the hot-swap fans, to devices in the peripherals bay, and to the hot-swap drive bay.
