PCI Configuration

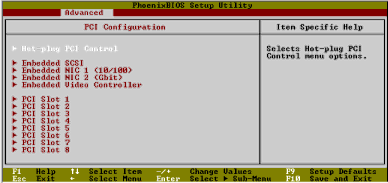

This submenu lets you specify the settings for the PCI devices. Press Enter to access the submenu screen of the parameters shown in the screen below.

Image 138

Acer G901 manual PCI Configuration
