The table below lists the LED states and the drive status indicated by each state.

LED state	Status

Solid green	The hard drive is present and powered on.

Flashing green	The hard drive is active.

Solid yellow	There is an asserted fault status on the hard drive.

Flashing yellow	A rebuild of the hard drive is in progress.

Off	The hard drive is not powered on.

Installing and removing a hot-swap drive in a carrier

To install a hot-swap drive in a carrier

Before you can install a drive in the hot-swap drive bay, you must install the drive into a drive carrier. To install a hot-swap drive in a carrier:

1If the plastic air baffle is installed in the carrier, remove the four screws that attach the air baffle to the carrier.

Save the air baffle in case you later remove a drive.

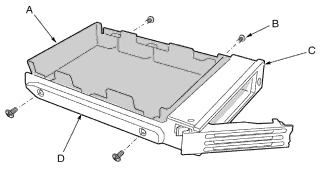

Figure 38 - Removing a plastic air baffle from a carrier

Image 92

Acer G901 manual Installing and removing a hot-swap drive in a carrier, To install a hot-swap drive in a carrier
