VR800 Owner’s Manual (Saving and Loading Song Data)

Loading data

*You can load data using the “Load PGM ?” menu in SETUP mode. The following procedure assumes that the current drive disk (3.5-inch E-IDE hard disk) does not contain any recordings, and that Program 1 (P01) has been set up on the disk.

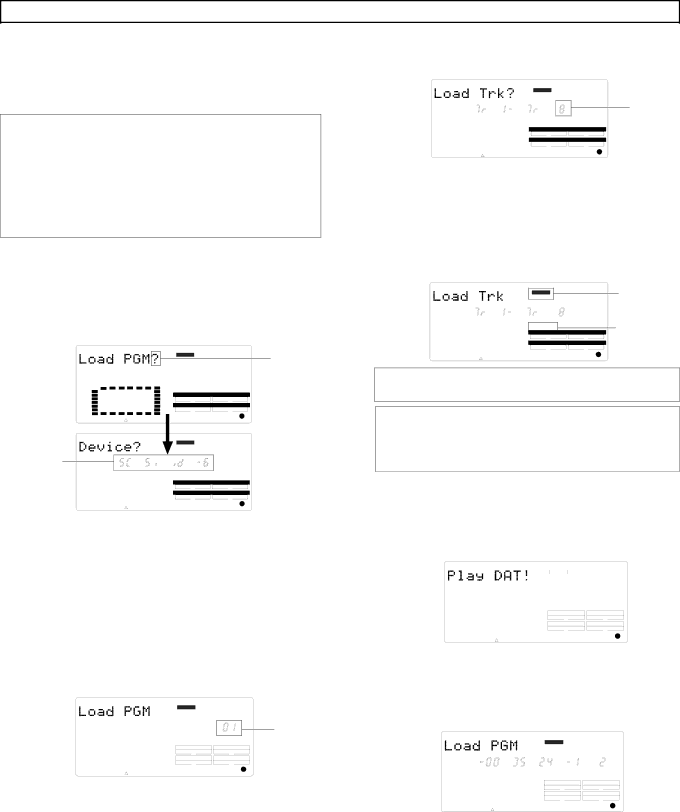

<[Load PGM ?] menu>

*Input signal options: [AdAt], [dAT], [SCSi id-6]

*Program options: P01 - P99 (an individual Program)

* Track options:	When using an adat or DAT: tracks 1–8,
	tracks 1–16, Tracks 1–24;
	When using a SCSI disk (SCSi id-6): All tracks
	will be automatically selected.

1.Press the SETUP key to enter SETUP mode.

2.Use the JOG dial to select [Load PGM ?] menu,

then press the EXECUTE/YES key.

[Device ?] appears and the selected input signal option flashes. ([SCSi id-6] flashes.)

DIGITAL	44.1kHz	Flashing
SETUP
SYNC OUT	DRIVE
CLK	IDE
AUTO	A.PUNCH
DIGITAL	44.1kHz
SETUP
Flashing
SYNC OUT	DRIVE
CLK	IDE
AUTO	A.PUNCH

3.Use the JOG dial to select the desired type of digital signal used for the load operation ([dAT] or [AdAt]).

[AdAt]	Select this to load data in the adat digital signal
	format from a connected adat.
[dAT]	Select this to save data in the S/P DIF digital signal
	format from a connected DAT.

6. Press the EXECUTE/YES key.

The VR800 displays the track selection screen. You can change the value of a flashing number.

DIGITAL44.1kHz

SETUP

Flashing

SYNC OUT DRIVE

CLKIDE

AUTO A.PUNCH

7. Use the JOG dial to select the desired tracks.

Options are Tr 1–8, Tr 1–16 (Real track 1–8 and Additional track 9–16), or Tr 1–24 (Real track 1–8 and Additional track 9–24). In this example, select Tr 1–8.

8. Press the EXECUTE/YES key.

The VR800 enters “load standby” mode and displays the following. [SURE ?] flashes.

DIGITAL	44.1kHz	Lights up
SETUP
SYNC OUT	DRIVE	Flashing
SURE ?
CLK	IDE
AUTO	A.PUNCH

Flashing [DIGITAL] indicates that signal is not input from the digital device (DAT or adat) correctly. Check the connections.

Note: Althoogh the [ASYnC] (Asynchronous mode) indicator may be kit in the display, during loading, the VR800 will operate in the [SYnC] (Synchronous mode). Be careful of making a digi- tal loop which can be created by the digital in clock.

9. Make sure that [DIGITAL] lights up steadily, and press the EXECUTE/YES key.

The VR800 displays the following, indicating “Start playing the DAT!” If you are using an adat, [Play AdAt] flashes.

Flashing			44.1kHz
	DIGITAL
		SETUP
	SYNC OUT		DRIVE
	CLK		IDE
	AUTO		A.PUNCH

4. Press the EXECUTE/YES key.

The number of the Program set up on the current drive flashes on the display.

DIGITAL44.1kHz

SETUP

Flashing

10. Start playing the DAT (or adat).

Start playing the tape from a point slightly prior to the top of the Program data. The VR800 reads the recorded pilot signal, then automatically starts loading data. (Wait a while until the following indication appears.)

	PGM
SYNC OUT	DRIVE
CLK	IDE
AUTO	A.PUNCH

5. Use the JOG dial to select a Program into which to load data.

REMAIN

DIGITAL44.1kHz

SETUP

H MS

SYNC OUT	DRIVE
CLK	IDE
AUTO	A.PUNCH

If only one Program has been set up, turning the JOG dial enables you to select [01] or [02]. If you select [02], “PGM” of [Load PGM] and [New] flash alternately.

This means that a new Program (P02) should be set up before you execute the load operation. (If multiple Programs exist in the current drive disk, turn the JOG dial to select a Program from these Programs plus one new Program.)

The VR800 displays the track numbers being loaded and the total time of the Program. The time value starts counting down as the load operation progresses.

The RECORD TRACK select key lamps for tracks 1 and 2 flash,and level meters 1 and 2 indicate the level of signal input from the DAT. (All RECORD TRACK select lamps flash and level meters 1–8 indicate the level of signal input from an adat.)
