Dell TL2000 1-4

Table 1-2. 2U library and 4U library rear panel descriptions

Number Item Description

1 Power connector(s) Both libraries require a 110/220 volt AC power connection.

v The 2U library has one power supply.

v The 4U library has a minimum of one power supply, but has the capability of

adding a redundant power supply.

2 Host interface

connectors

The library has one or more of the following host interface connectors on the drive

sled:

v a 68-pin HD SCSI connector

v a Fibre Channel connector

v a SFF-8088 mini-SAS connector

3 Tape drive sled This library supports the Ultrium 3 and Ultrium 4 Tape Drive. The tape drive in

the library is packaged in a container called a drive sled. Drive sleds come in a

Full height or Half height configuration. The drive sled is a customer replaceable

unit (CRU), and is hot-pluggable - designed for easy removal and replacement.

1342

5

6

7

8

9

10

a77ug100

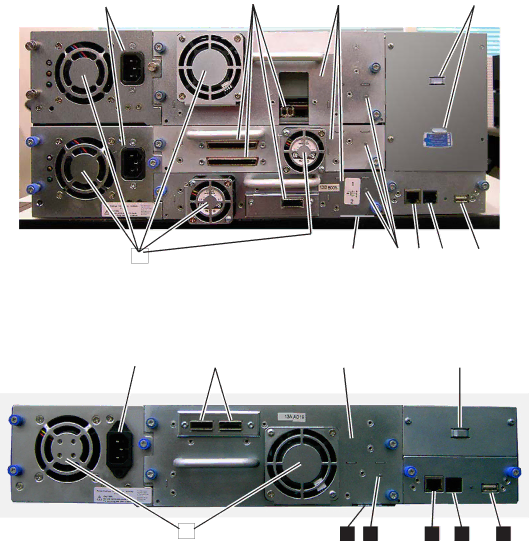

Figure 1-4. Rear panel of a 4U library with Full height Fibre Channel drive and Half height SCSI and SAS drives. The

configuration shown in this figure is used as an example only. This configuration is not recommended. Half height

SCSI drives are not supported on the TL2000/TL4000.

a77ug135

134

5

6

7

8

9

2

10

Figure 1-5. Rear panel of a 2U library with a full height dual port SAS drive

1-4 Dell PowerVault TL2000 Tape Library and TL4000 Tap e Library User's Guide
