8-10 User Assignments
The numeric value of the function as specified by the SV7000, R16 manual. You can display all the features available, or just by the ACD, AD64, Call Forwarding, CALL PICKUP/PAGE, or FLEX group.

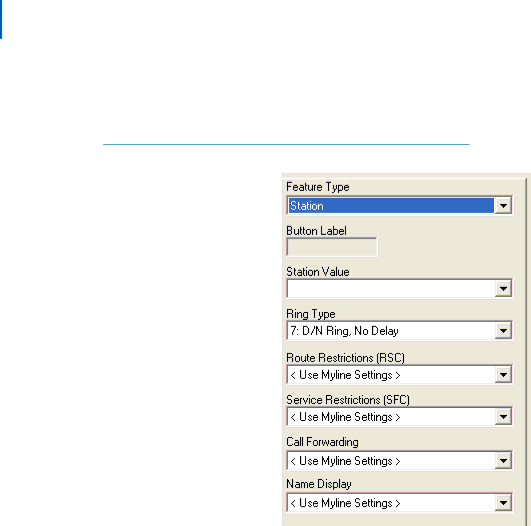

Figure 8-11 Button Template Editor - Feature Type: Station
•Button Label field
The suggested, editable label for the function selected.
•Station Value field
You can select from those items listed in Table
•Ring Type field
You can select from a list of seven different ring types to the user:
0:No Ring
1:Day Ring, No Delay
2:Night Ring, No Delay
3:...Not Used...
4:D/N Ring, 30 Second Delay
5:D/N Ring, 20 Second Delay
6:D/N Ring, 10 Second Delay
7:D/N Ring, No Delay
Each selection has a number associated to it for quick data entry. For instance, a 7 results in a No Delay ring type.
•Route Restrictions (RSC) field
You can select either Use Myline Settings or RSC - 0 through RSC - 15.
MA4000 Installation Manager User Guide - Revision 6
