NEC MA400 manual 17Edit Time of Day Patterns

7-20 Advanced Features

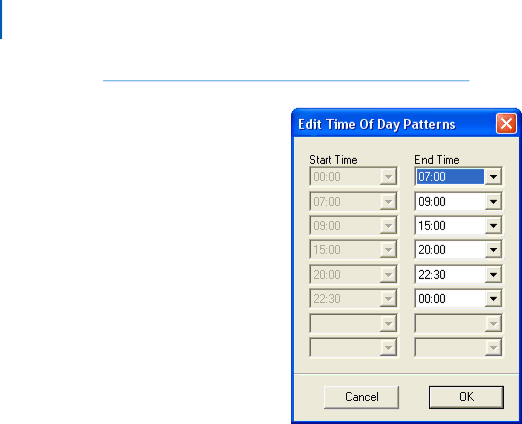

Figure 7-17Edit Time of Day Patterns

—Enter the desired time sequences, not to exceed 24 hours.

Step 6 To edit a circuit card’s routing, choose a circuit card (or cards) listed in the Route field and use the Right Arrow button to move the card to the editing section.

Step 7 To edit a specific card, choose the card and select the Edit button. Figure 7-18displays.

MA4000 Installation Manager User Guide - Revision 6
