Baseboard
14.6.14 Sliding the local service display inward

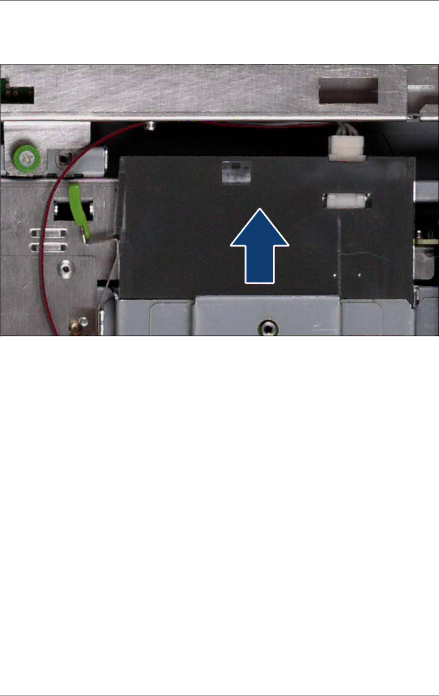

Figure 183: Sliding the local service display inward
ÊSlide the local service display inward until it clicks into place.
14.6.15 Completing the task
ÊPerform the following procedures to complete the task:
1."Inserting the TPM" on page 271
2."Inserting the UFM" on page 265
3."Installing the I/O board" on page 244
4.Install the BBU holder, see "Expansion cards and BBU" on page 105
5.Install the PCI Riser, see "Expansion cards and BBU" on page 105
6.Install all expansion cards and dummy modules in PCIe slots #8 to #17, see "Expansion cards and BBU" on page 105
IMake sure that you reinstall each card in the slots it was located before the replacement.
