Removing a Processor Cartridge

Use the following procedure to remove a processor cartridge.

1.Power off the system and remove the access cover as previously described.

2.Remove the foam cover from the electronics bay.

3.With your right thumb on the retention module bracket (A on the following figure), wrap your right index finger around tab (B).

A

B

C

A.Retention module bracket

B.Bracket tab

C.Latch

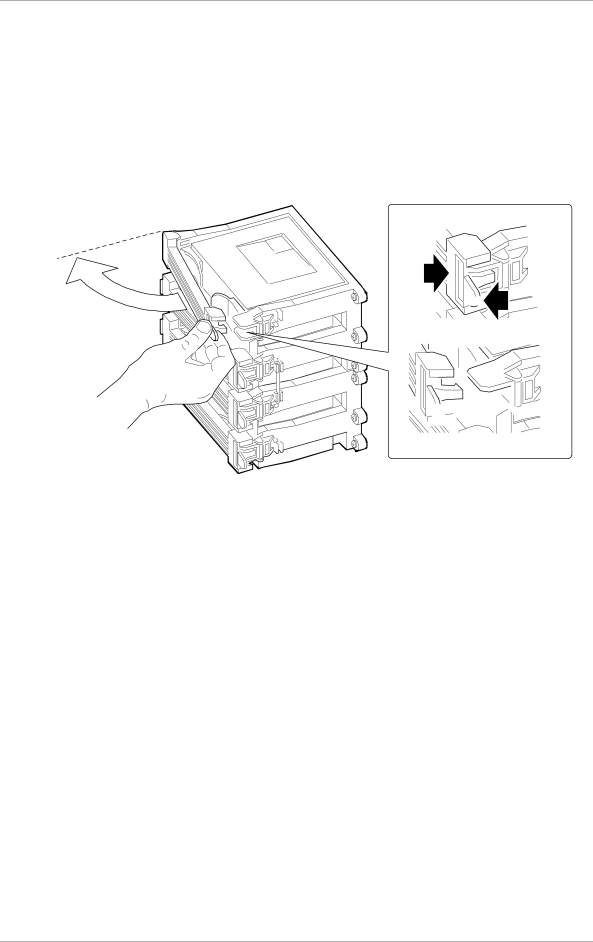

Opening the Latch

4.Use your right index finger to slightly pull the tab outward and to the left. A latch (C) releases when the tab is pulled, making it unnecessary to pull the entire bracket.

5.With the latch (C) released, rotate the bracket 90º to the left until perpendicular to the front of the retention module.

6.Grasp the bracket and move (not rotate) it to the right to disengage the bracket hinge, then remove the bracket from the cartridge.

Upgrading Your System 4-13
