Note: A failed SCSI hard drive is indicated by a continuously lit yellow LED on the front panel. The LEDs and corresponding hard drives are numbered 0 through 5, from top to bottom (for example, drive 0 is the top-most hard drive in the bay and drive 5 is the bottom-most drive in the bay).

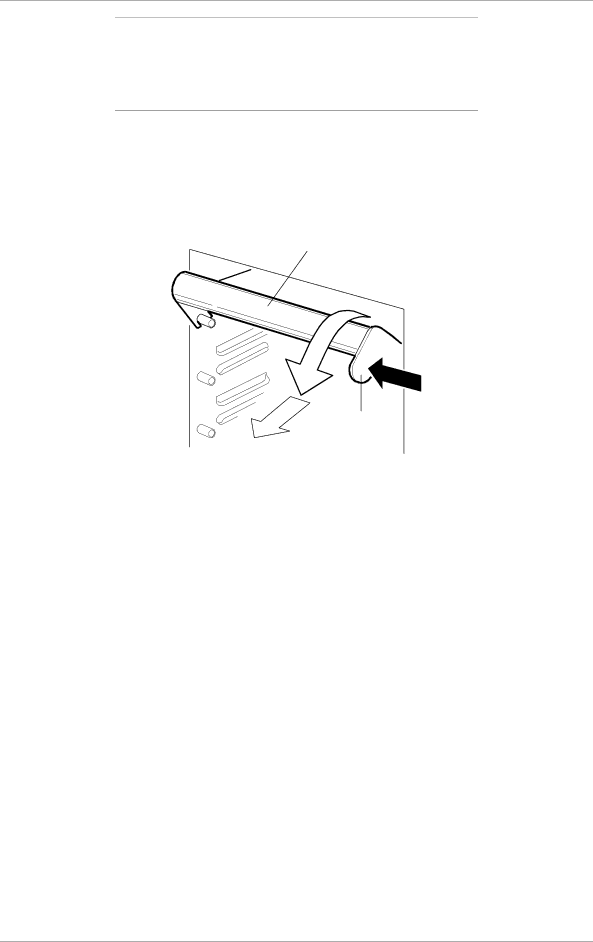

3.Press the rounded tab on the right of the carrier towards the center of the drive (B in the following figure) while gently pulling down the carrier handle (A in the figure).

A

B

Unlocking the Carrier

4.With the handle pulled down, pull the carrier and drive out of the bay.

5.Place the carrier and drive on an antistatic surface.

6.Install a replacement carrier and SCSI hard drive as previously described.

7.Close and lock (if appropriate) the metal door, and close the front panel.

Installing Removable Media Devices

Your system supports up to three SCSI removable media devices, including the factory installed SCSI CD-ROM drive. The CD-ROM drive is shipped installed in the bottom slot, with the remaining two slots available for installation of optional devices (tape drive, other removable devices). Additional devices should be installed in the first available slot from the top.

Your system ships with a four-connector narrow SCSI cable. The SCSI CD- ROM drive is connected as the last device on the SCSI cable and is terminated. Additional single-ended SCSI removable media devices can be connected to the remaining connectors.

If you are adding or removing a SCSI removable media device, consider the following:T

A tape drive SCSI address assignment is 2.

Upgrading Your System 4-27
