Epson L90 B.1.3 Continuous Label Roll Paper

Rev. B Consumable Specifications B-11

TM-L90/TM-L90 with Peeler Technical Reference Guide

B.1.3 Continuous Label Roll Paper

B.1.3.1 Continuous Label Paper

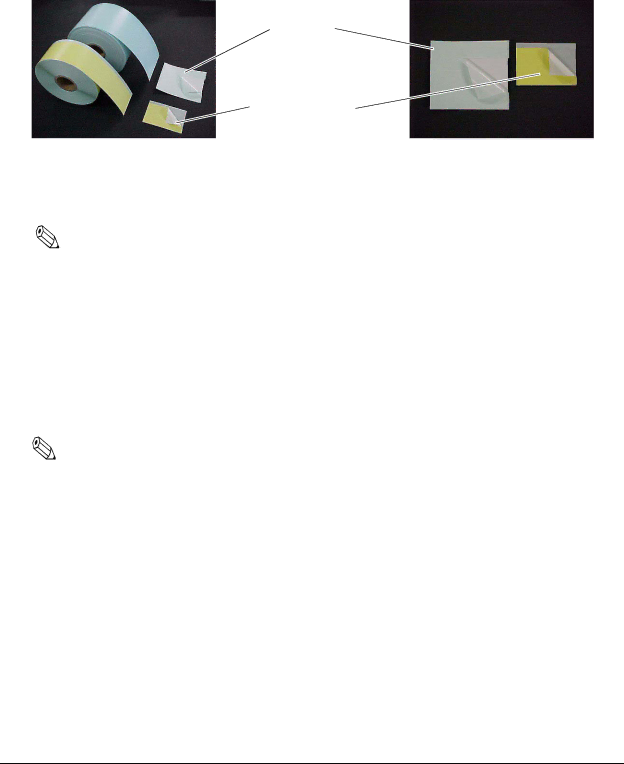

Continuous label paper is label roll paper without labels die cut in predefined sizes. There are

types, back slit type or cut-off edge type:

Feature: Label size (length) is variable with an autocutter; therefore, it is possible to print labels

of various sizes. Compared with die-cut label, it is economic because of no die-cut cut-off edges.

Note:

Cut-off edges make it easier to remove a label from backing paper.

B.1.3.2 Specified Continuous Label Roll Paper

Epson provides the following:

Note:

The TM-L90 can use thermal roll paper with width of 38 ~ 70 mm or roll paper with width of 80 mm.

For two-color thermal roll paper, "Notes on Two-Color Paper Handling" on page B-23.

If solid printing or outline character printing on a label is executed, the print quality may be decreased.

Roll paper

type no.

Printing

method Paper width Length

Rolls/b

ox Other

NTL080-ZEN Thermal

label

80mm {3.15"} Approx.

40m{1574.8"}

3 rolls Continuous label, label size

76mm {2.99" }width

Back slit type

Cut-off edge type
