B.1.2.8 Requirements for Die-Cut Label Size

When manufacturing die-cut label paper, be sure that the paper meets the following

requirements.

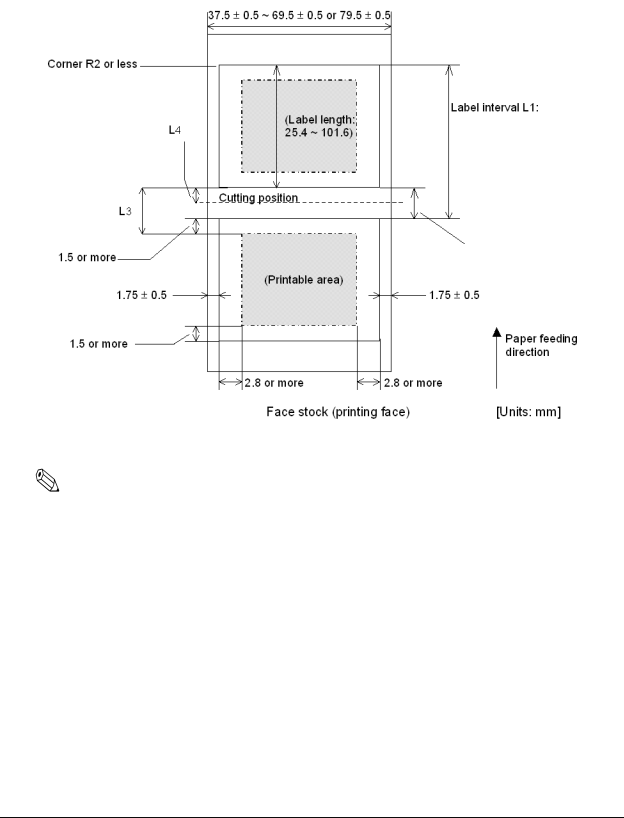

Label Size Requirement

Note:

❏

Be sure to set the cutting position (L4) between labels.

❏

Be sure that the distance from the cutting position to the print starting position (=L3-L4) is 3.6 mm

{0.14"} or more.

Label length + L2

L2 = 3 ~ 10
