Epson L90 Rev. B

Rev. B Consumable Specifications B-19

TM-L90/TM-L90 with Peeler Technical Reference Guide

B.2.2.8 Requirements for Transparency Rate of Die-Cut Label Paper

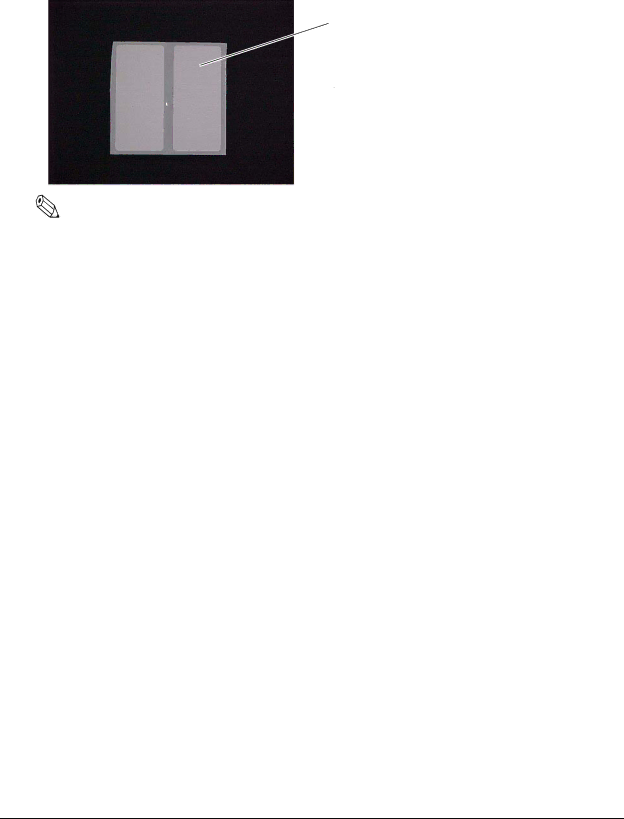

If transparency (without black marks) label is used, use a label that meets the following

requirements so that the printer can recognize the label position:

Note:

❏

Transparency rates are measured by the Macbeth TD-904 (with a filter for infrared) photometer. The

transparency rates are calculated as follows:

Use

Density = Log10 (Amount of irradiation / Amount of transparency)

Then,

Transparency rate (%) = (Amount of transparency / Amount of irradiation)

×

100

B.2.2.9 Requirements for Black Mark Position for Die-Cut Label Paper

If a die-cut label with black marks is used, there are two reflective rate requirements, depending

on the size and position of black marks. Be sure to use label paper that meets either black mark

position requirement I or II as follows:

(label + backing paper):

transparency 18% or less

(backing paper): transparency

47% or more
