B-10 Consumable Specifications Rev. B

B.1.2.12 Requirements for Black Mark Position II

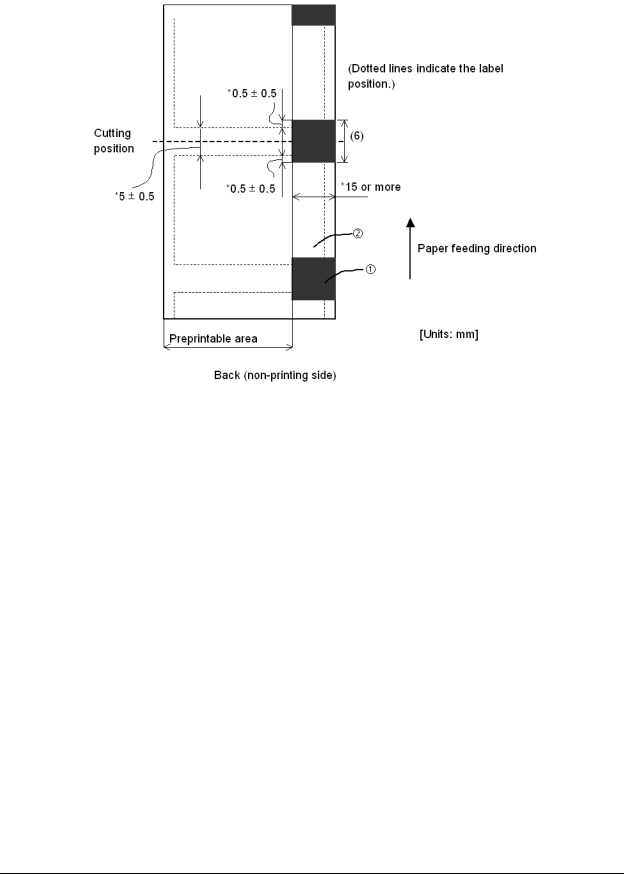

The black mark positions on the paper to be manufactured must meet the requirements in the

figure below (the reflective rate is measured using the back of the paper, the non-printing side):

❏Black mark length in vertical: 4 ~ 7.5 mm {0.157~ 0.295"}

❏Black mark position: Any places

NOTE:Reflective rates are measured by the Macbeth PCM-II (Filter D) meter.

If label paper meets Black Mark Position Requirement I, it is not necessary to consider Black Mark Position

Requirement II.

Reflecting rate of black mark portion (1) 17% 16% 15% 14% 13% Less

Reflecting rate of the portion where the

black mark does not exist (2)

90% 85% 80% 75% 70% More
