Epson L90 Recoverable errors

F-4 Troubleshooting Rev. B

Recoverable errors

Although normal printer operation is no longer possible when recoverable errors occur, they do

not represent printer failure.You can recover from a recoverable error by turning on the power

switch or issuing a command from the driver after eliminating the cause.

Note:

*1: Use the memory switch Msw8-8 to determine the cover open error as an automatically recoverable

error or a recoverable error. (Factory default setting is Recoverable Error.)

*2: With the TM-L90, if an autocutter error occurs due to a paper jam, turn off the power, remove the

jammed paper, and turn the power on again.

*3: When a paper layout error occurs causing by jamming paper while printing, turn the power off and

remove the jammed paper, then turn the power on again.

You can easily set the paper layout by using the automatic paper layout setting. Refer to "Memory

Switch Functions" on page 2-35.

Error recover command is valid only when a recoverable error (excluding automatically

recoverable errors) occurs. When a recoverable error occurs, you can recover from the error by

sending an error recover command from the driver after eliminating the cause of the error; you

do not need to turn on the power switch again.

Recoverable Errors

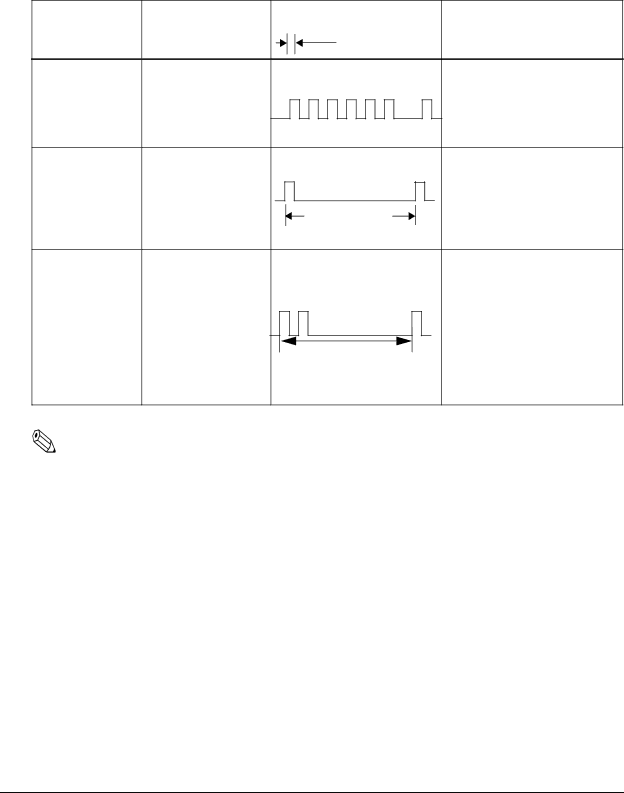

Error name Type of error Error LED flash code Recovery operation

Roll paper cover

open error(*1)

Printing on the roll

paper is not performed

correctly due to a

cover-open

After having closed the cover,

perform either A or B to recover.

A, Send the error recover

command from the driver.

B, Turn on the power switch

again.

Autocutter error

(TM-L90 only)

(*2)

The autocutter does

not work correctly.

After having eliminated the

cause of the error, perform either

A or B to recover.

A, Send the error recover

command from the driver.

B, Turn on the power switch

again.

Paper layout error

(*3)

Cannot detect the

label or the black

mark.

The wrong type of the

paper, which is not

stored in the printer, is

currently set.

Perform either A or B to recover.

A, Install the same type of

paper that is stored in the

printer, and then send the

error recover command

from the driver or turn on the

power switch again.

B, Turn off the power switch,

and then reset the paper

layout of the current paper

in the printer.

A

pprox.

320

ms

Approx.2560 ms

Approx.5120 ms
