A.1.1 Fan tray

The fan tray (Baldor part FAN001-024) provides sufficient cooling for the 3A, 6A or 9A MicroFlex e100. It requires 23 - 27.5VDC at 325mA, which may be sourced from the same filtered control circuit supply used for the MicroFlex e100. The MicroFlex e100 is UL listed (file NMMS.E128059) when used in conjunction with the fan tray, mounted exactly as shown in Figure 45.

Fan tray

Fan tray

94 (3.7)

FAN001-024

dimensions

84 (3.3)

21.5 (0.85)

142.5 (5.6)

Assembled MicroFlex e100 and fan tray

66(2.6)

Position of fan tray mounting holes relative to MicroFlex e100

Bottom of

MicroFlex e100

17.3

(0.68)

Fan tray

164.5

(0.63)(0.18)

It is important that the fan tray is mounted in close proximity to the MicroFlex e100 as shown above. Failure to do so will result in decreased cooling efficiency.

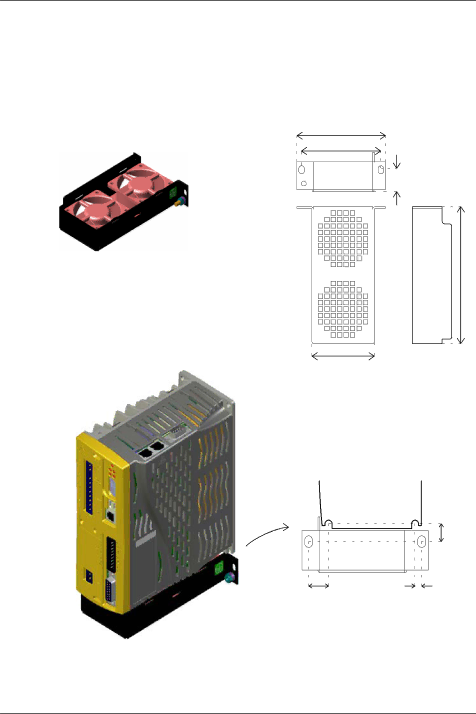

Figure 45 - Fan tray

A-2 Accessories

MN1942
